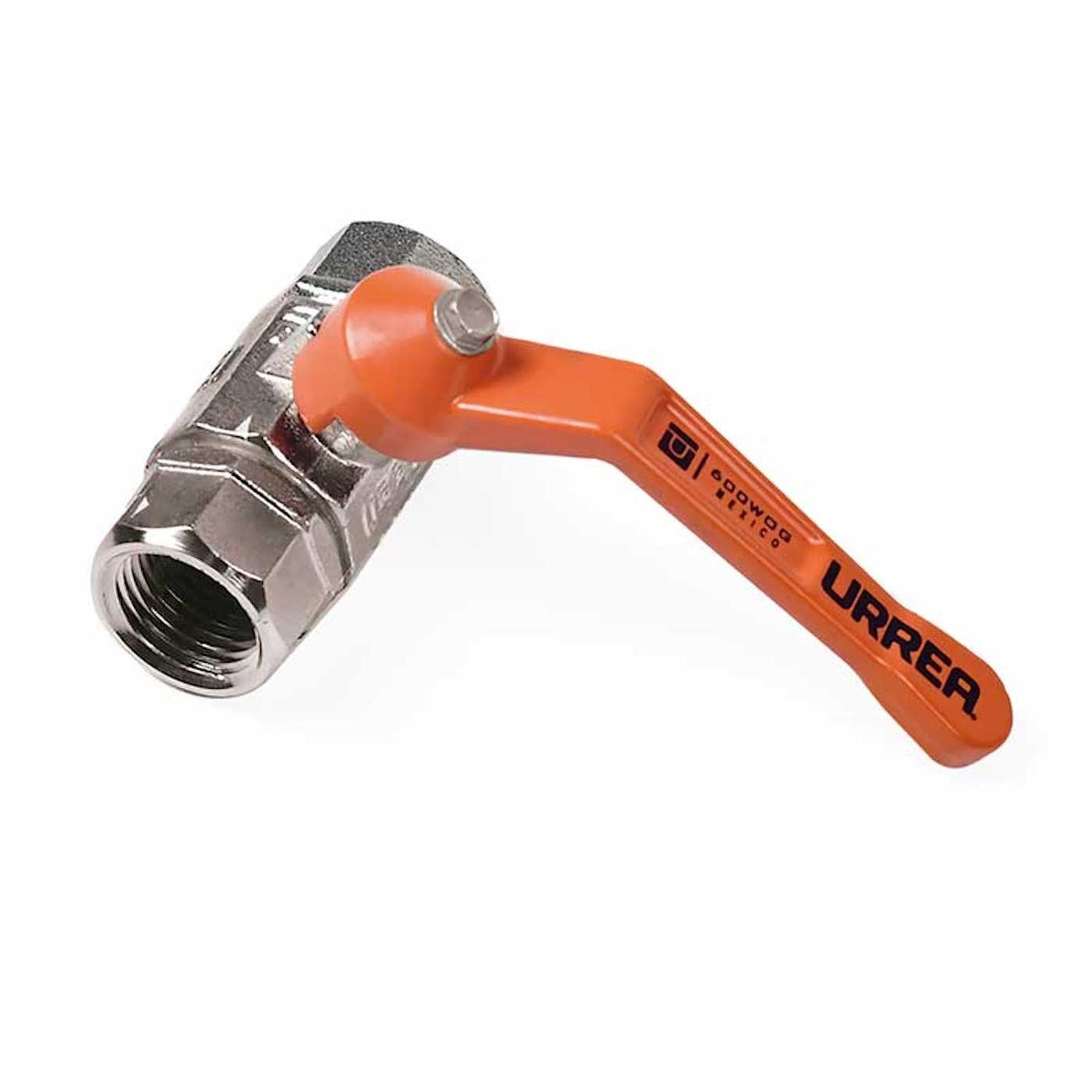

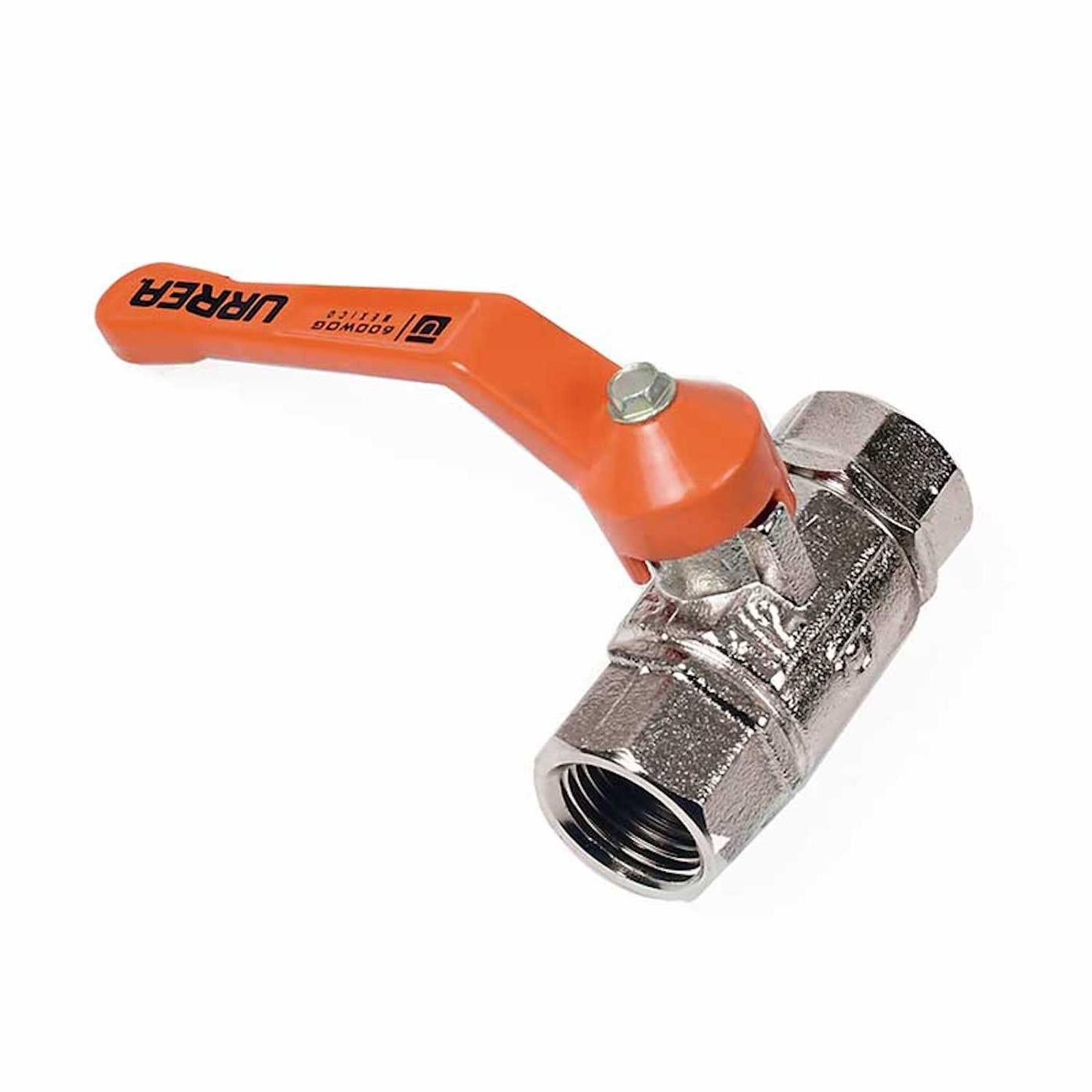

Urrea Válvula Esfera F-550 3/4"

Regulating valve for the passage of water or other liquids in home, school or commercial hydraulic installations, etc. Prevents water waste.

Chrome-plated brass ball.
Brass to Teflon seal.
Nickel-plated body.
Full bore.
Threaded ends (NPT).
Approved for LP or natural gas handling.
ANSI/ASME B1.20.1 and NOM-002-CNA-1995 standards.

• Model: 550.19.


• Material: Brass.


• Size: 3/4 inch.


• Steam Working Pressure S.W.P.: 125 lb/in2 - 8.8 kg/cm2.


• Water/Oil/Gas (Air) W.O.G. Service: 600 lb/in2 - 14 kg/cm2.


• Installation Torque: 11.5 kg/m.


• Working Temperature: 150 degrees Celsius.


• Made in Mexico.


• Packaging Dimension:


• 16 x 13 x 8 cm.


• Packaging Weight:


• 0.500 kg.
